Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables

Place of Origin : Shandong, China

Brand Name : Yuanhui

Model Number : WDZ-YJV

Certification : CE CCC ISO

MOQ : 1000 meters

Price : $2.70/meters 1000-1999 meters

Insulation Material : xlpe

Type : LOW VOLTAGE

Application : Construction

Conductor Material : Copper

Jacket : PVC, PVC Jacket

Size : 16/25/35/50/70/95/120/150/185

Product name : XLPE

Color : Customer's Requirement

Conductor : Copper Core

Packing : 100m/roll

Insulation : XLPE Insulation Cable

Material : Copper

Contact Now

Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
Type And Name
Type
Designation
Applications
YJV
Copper conductor,XLPE insulated,PVC sheathed power cable
For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV
Aluminum conductor,XLPE insulated,PVC sheathed power cable
YJY
Copper conductor, XLPE insulated,PE sheathed power cable
YJLY
Aluminum conductor, XLPE insulated,PE sheathed power cable
YJV22
Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV22
Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
YJV23
Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJLV23
Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJV32
Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force.
YJLV32
Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
YJV33
Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
YJLV33
Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
Construction
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
-Conductors
The conductors shall be either of Class 1 or Class 2 of plain accordance with IEC 60228.

-Insulation
PVC Insulation material and thickness shall be as per IEC 60502-1, PVC material shall be Type A as per IEC 60502-1.-Assembly / Inner Covering
The inner coverings may be extruded or lapped.
-Armour
Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1,

-Outer Sheath
Outer sheath shall be of extruded PVC as per IEC 60502-1, Polyethylene, Halogen free compound.
Polychloroprene, chlorosulfonated polyethylene or similar polymers.
-Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22,
IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.
Applications
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
Company Profile
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables

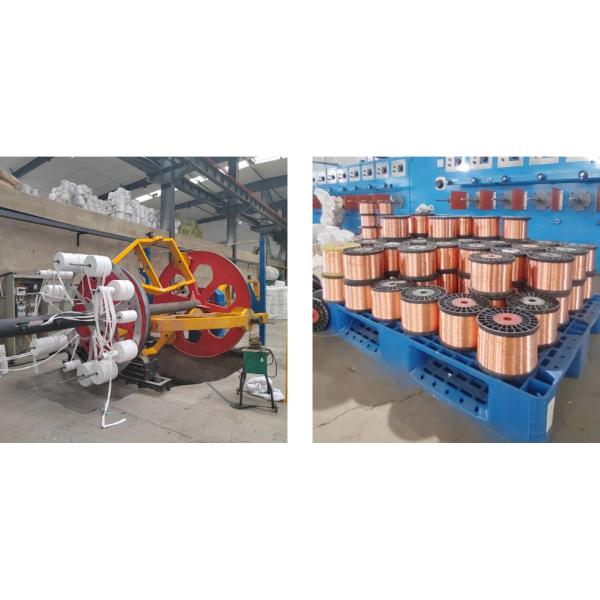

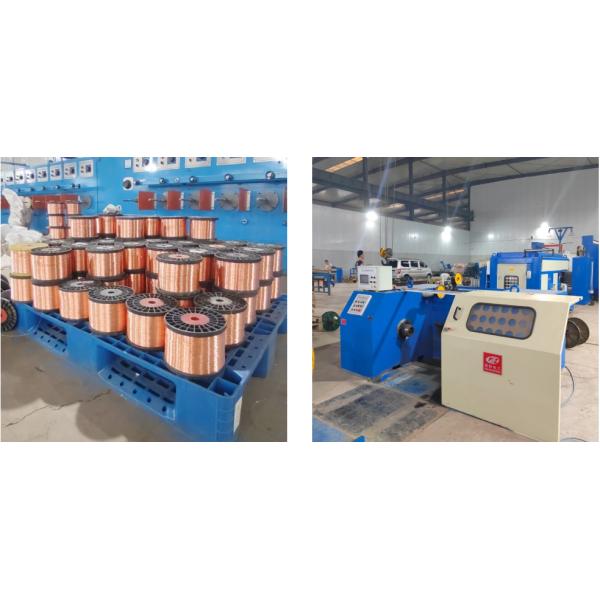

factory
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables

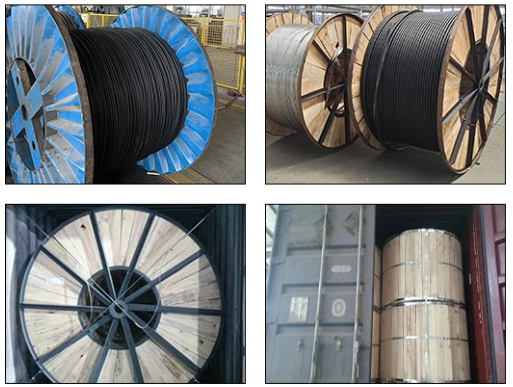

Product packaging
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
Payment & Delivery
Package: Generally, pack in rolls or wooden drums. Accept customized service for free. Rolls, Wooden Drums, Steel Drums, Reels

Delivery: Both 20GP containers and 40GP containers are supplied. Air transportation, Sea transportation, Express delivery.
Copper Conductors XLPE Power Cable 150mm PVC Jacket Low Voltage Power Cables
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.

Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.

Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.

Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.

Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.

Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
